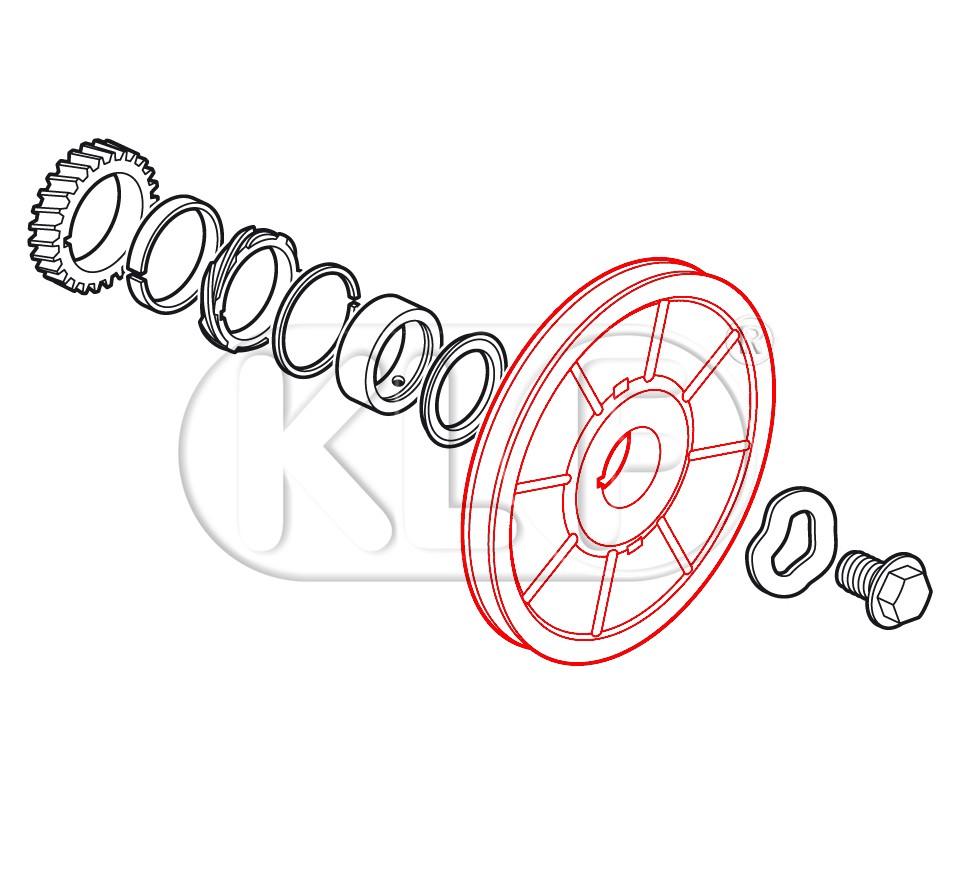

Crankshaft Pulley, 170mm, Top Quality, 25-37 kW (34-50 PS)
Part number:
111150dt-170
Reference Number:
113105251G
Weight:
0.57 kg
Brand:
CSP
Product information "Crankshaft Pulley, 170mm, Top Quality, 25-37 kW (34-50 PS) "

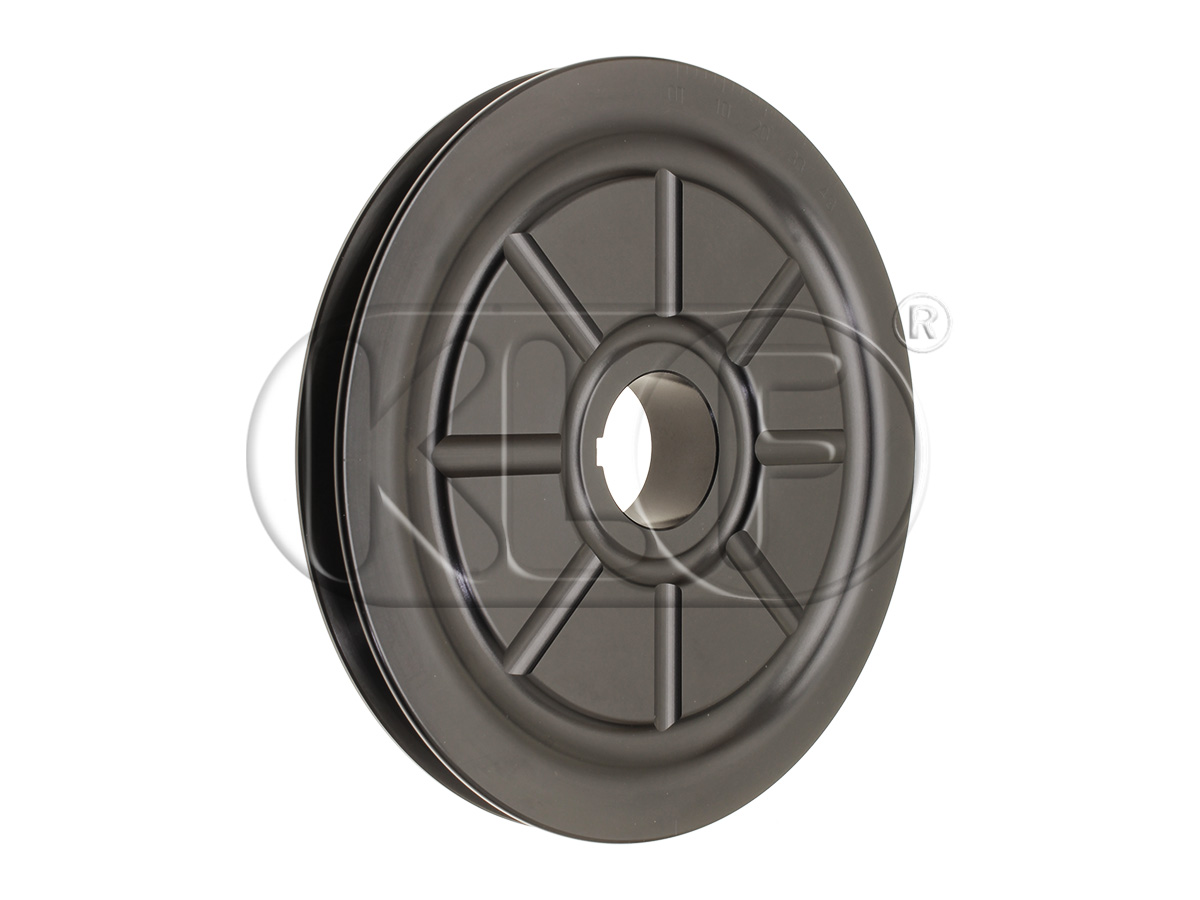

This crank pulley is made out of high-strength aluminum and is black hard-anodized.

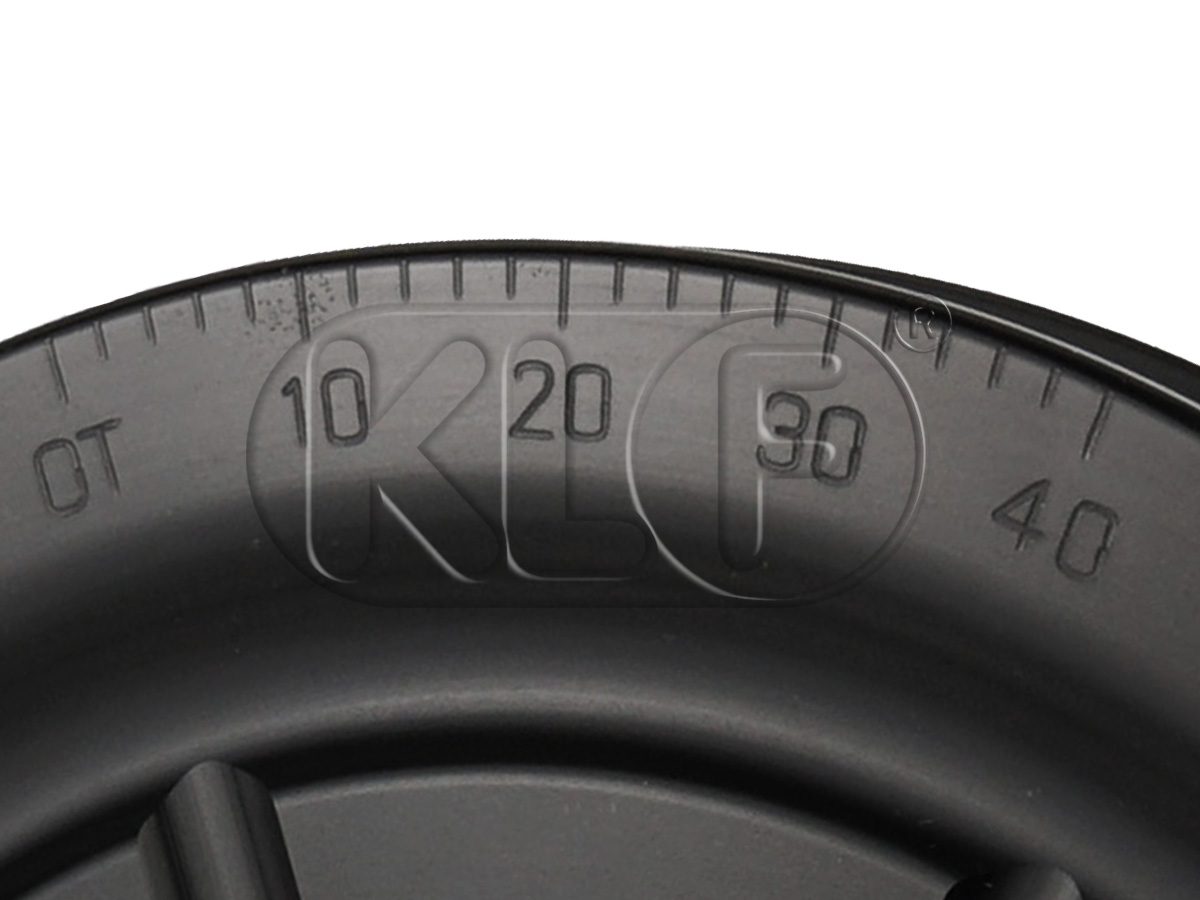

The weight of the pulley with 170 mm diameter is 568 grams, the precise scale is laser-engraved.
With a perfectly manufactured oil groove the pulley is as tight as the original part.

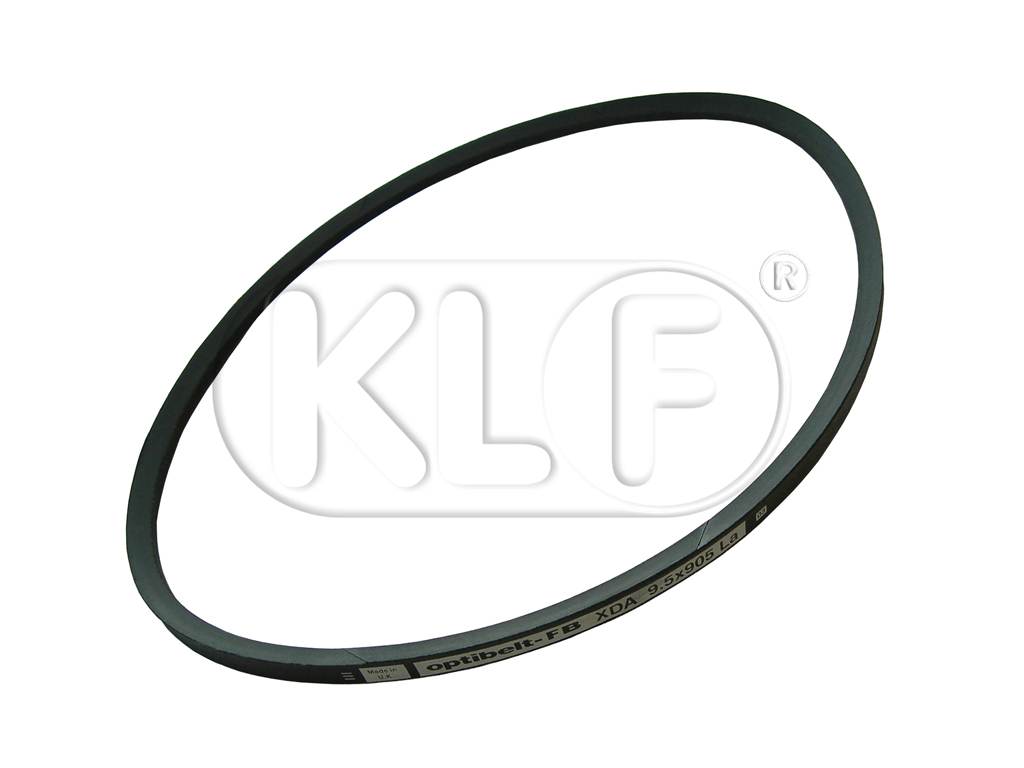

The correct belt is part # 118138 with the size 9,5 x 905mm
Information on the manufacturer (information obligations under the GPSR Product Safety Regulation)
Custom & Speed Parts Autoteile GmbH
Am Redder 3
22941 Bargteheide, Germany
info@csp-shop.de
Zubehör
Crankshaft Pulley Pulling Aid
€49.00*
Adjustable puller for Typ-1 pulleys and Power Pulleys
Adjustable from 146 - 170mm
Do not works for 18-22kW (25 - 30PS)
Pulley Skale Template
€15.80*
The Type-1 engine came with many different pulleys and various ignition markings over the years. This makes it difficult to identify the 7.5° before TDC notch on the numerous models – but it is essential to know the right one to adjust the ignition properly.
You can solve this problem by using the scale template for pulleys. Just screw off the pulley bolt, take off the washer, put on the scale template and align it with the stainless steel pin. An opening in the clear plastic disc helps to mark the pulley at the 7.5° before TDC position. You don’t have to remove the pulley for this procedure!
The scale template can be used with all stock pulleys and aftermarket versions with 175 and 170 mm diameter. This is a tool which should be on hand in every workshop!
Ignition timing light 12V
€42.00*
- for ignition timing adjustment and checking
- suitable for all 12-V petrol engines, where ignition time adjustment is technically possible
- ignition signal output via terminal for 1st Cylinder
- bright stroboscope lamp provides good readability of the ignition time marking
